esitron PGA52.2.028行星齿轮箱

esitron PGA52.2.028行星齿轮箱

==============================

※※※ 深圳市扎克贸易有限公司

※※※ 张瑞 188-24-24-3080（V同）

※※※ Q：306-167-1820

==============================

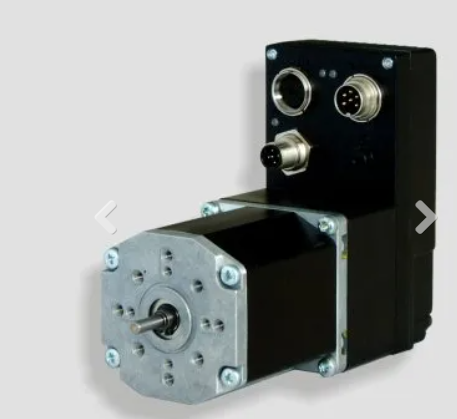

esiMot

esiMot | esiMot XL | esiMot SL

Motor with integrated electronics

Previous

Next

brushless servo motor

integrated positioning

Speed-/torque regulator

digital 4-Q-regulator

Analogue set-point: 0 - 10 V, +/- 10 V, 0/4 - 20 mA

Digital in- and outputs

Field bus: RS 485, CANopen DSP 402,

EtherCAT (CoE), Profibus-DP, Profinet-IO

Power range: 120 W - 4,4 KW

Option: Multiturn absolute encoder

Option: Standstill brake

Option: Safe Torque Off (STO Category 3)

Option: mounted Gearboxes

Option: ATEX 114, Zone 2 and 22

Manufacturer: Esitron

Type: Brushless Servo Motor

Model: esiMot6/1.320.01

Size: 6/1

Rated Voltage: 24 VDC

Motor Power (S3): 120 W

Rated Power: 70 W

Nominal Torque: 0.22 Nm

Impulse Torque: 0.5 Nm

Rated Speed: 3000 min-1

Rated Current: 4 A

Peak Current: 14 A

Protection class: IP64

Absolute Encoder: 188

Incremental Encoder: 148

Address Switches with Address Switches

Esitron PGA52.2.028 Planetary Gear Box

Ratio: 28.125

Stages: 2

Rated Torque: 8 Nm

Max. Driving Torque: 24 Nm

Play: 50′

Efficiency: 81 %

Max. Axial Load: 500 N

Max. Radial Load: 350 N

Weight: 2.1 kg

ESITRON ESIMOT6/1.320.01 BRUSHLESS SERVO MOTOR
